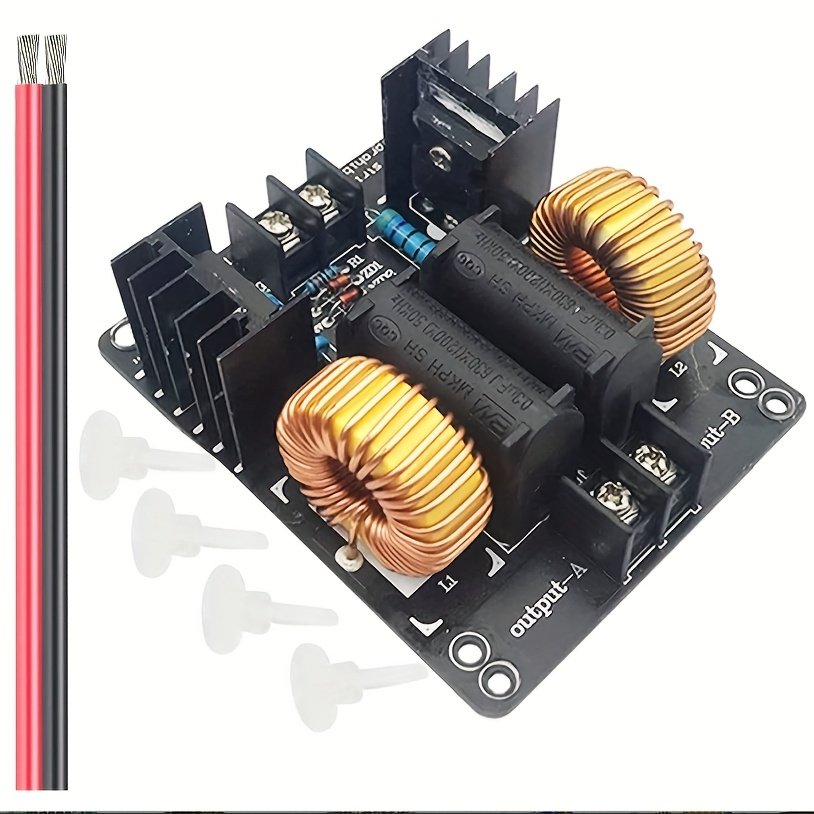

1pc 1000W 20A ZVS Low-Voltage

About this item

Connector Type : 20 pin Compatible Device : Personal Computer Form Factor : Miniitx Applications: High power, low heat, simple and reliable, fans are widely used to drive spark gap coils (SGTC), Jacob's ladders, Marx generators, and more. ZVS Circuit: A flyback driver circuit used for igniting coils, zero-voltage switching is also included, and many fans refer to it as the "ZVS circuit." Ideal Experiment: The ZVS driver kit supports DC input voltages of 12-30V and can output high voltages up to 800 times the input voltage, generating ideal electrical arcs of 5 centimeters for scientific experiments. Performance Characteristics: Large inductance stability parameters, 30mm large magnetic ring, 1.2mm pure copper wire; high current sections of the circuit board are soldered, and all resistors are five-ring precision resistors. Product Description : This ZVS driver kit supports DC input voltages from 12 to 30V and can output high voltages up to 800 times the input voltage, generating arcs up to 5 centimeters, making it ideal for power science experiments. Reminder: 1. The power supply should be at least 12V 5A; if the power supply is too low, it may lead to low power input, causing both MOSFETs to connect simultaneously, which can damage them. (For induction heating function, a power supply of 24V 15A is recommended) 2. Do not turn on the module without a load connected, as this will produce high-frequency noise and damage the MOSFETs. 3. Do not exceed 30V!
